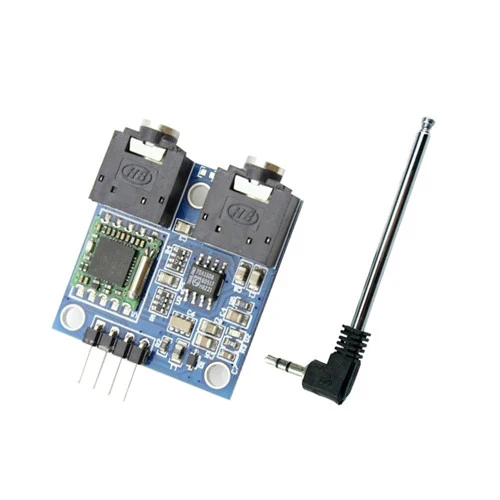

This FM Radio module is a radio broadcast receiver module that is based on the TEA5767 IC product from Philips. The module is equipped with adjustable radio antenna and can be connected to speaker. It uses frequency modulation or FM signal with frequency range from 70 MHZ to 108 MHZ where you can tune the radio using software to select the receiving frequency.

The FM radio module is characterized by low voltage and low power consumption which make it suitable for many applications such as mobile phones, MP3 player, clock alarm and many others.

Specifications

power supply: 5V
Frequency range: 76-108MHZ
Communication Bus: I2C
FM chip: TEA5767 from philips
With reverse polarity protection diode
Directly plug antenna interface
Blue LED power indicator
Onboard 3.5mm audio interface

Pin Defenition

FM radio module pinout (TEA5767)

Features

Low power consumption
No need to adjust Intermediate frequency
High sensitivity(low noise RF input amplifier)
High power auto gain control AGC circuit
Soft mute

Dimensions: 31*30mm

Package Includes:

FM radio module
Antenna
