Product Description

This wireless joystick includes 2 wireless nRF 24L01 tranceiver and joystick shield. Ideal for long distance remote control applications such as robot remote control, home automation, and even quadcopter control up to 85 m range.

Please check Video below as we used it in future elecronics (Arduino Egypt) for remote control of pan-tilt mechanism. We show also the analog joystick position data on pc monitor.

You can also use the tranceivers not only for transmitting control command, but also for sending sensor data the other way around.You may add the low cost Nokia LCD to the kit and read both control commands or sensors data.

Features

Analog (continuous) joystick + 7 push button (digital) control
Integrated wireless module with the joystick shield (no wire)
Range: more than 85 m
On-board integrated pcb antenna
Ultra low power consumption – months to years of battery lifetime
250kbps to 2Mbit Data Rate
Auto Acknowledge & Auto Re-Transmit
Multiceiver - 6 Data Pipes
Software selectable channel from 2400MHz to 2525MHz (125 Selectable channels)

Kit Includes:

1 piece joystick shield
2 pieces nRF24L01 wireless module

Joystick Shield control with wireless module nRF24L01 tutorial

Everything You Need to Know about the nRF24L01

RF

Wireless Joystick Shield Control Kit

868 MHz antennas 5DBI Lora

Remote Control Relay Kit (12V - 433Mhz)

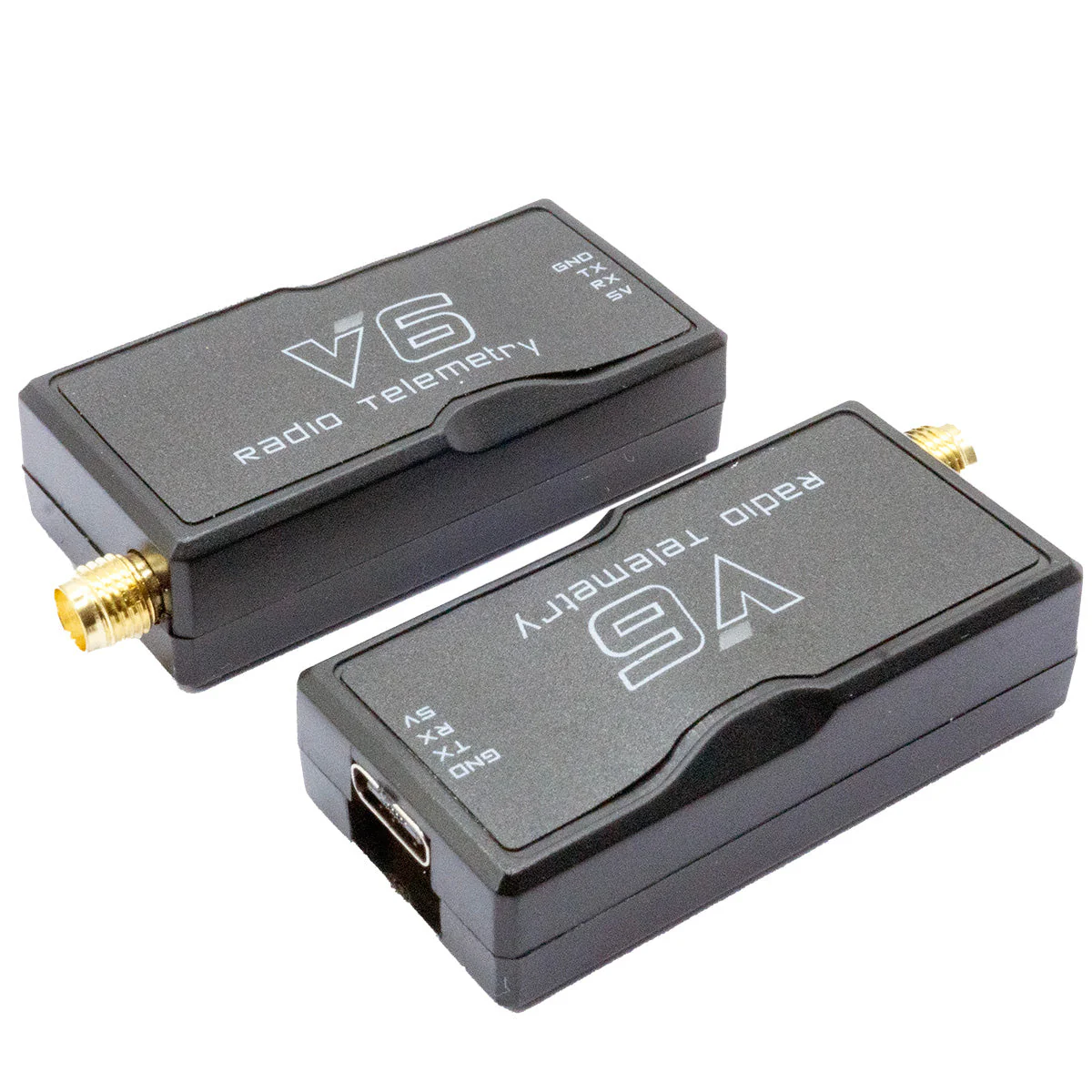

3DR Radio V6 Telemetry - 433Mhz
