Micro hydro generator, the potential energy conversion of the water or Air into electrical energy mechanical equipment.

We provide you with three kinds of generators, can be directly to the small battery charge,

can charge mobile phone, can give 12V radio power, charging, power supply for LED lights, etc.

Specification:

work on water and air

Type: 80V Generator

Output high voltage: DC 0 V- 80V (1.2Mpa)

The maximum output: ≥220mA at (12V)

output, generator without voltage regulator circuit

can be directly 10W LED about 3-12V lights no more than 12 V

Line resistance: 10.5±0.5Ω

Insulation resistance: 10MΩ(DC100)

The outlet closed the maximum voltage: 0.6Mpa

The water outlet opens the maximum voltage: 1.2Mpa

Start water pressure: 0.05Mpa

The mechanical noise: ≤55dB

Generator single volume: 90g

The life of generator: ≥3000h

Appearance: generator surface cleaning, no corrosion, the structure is strong.

Output characteristics:

the output voltage with no voltage regulator is proportional to the water pressure.

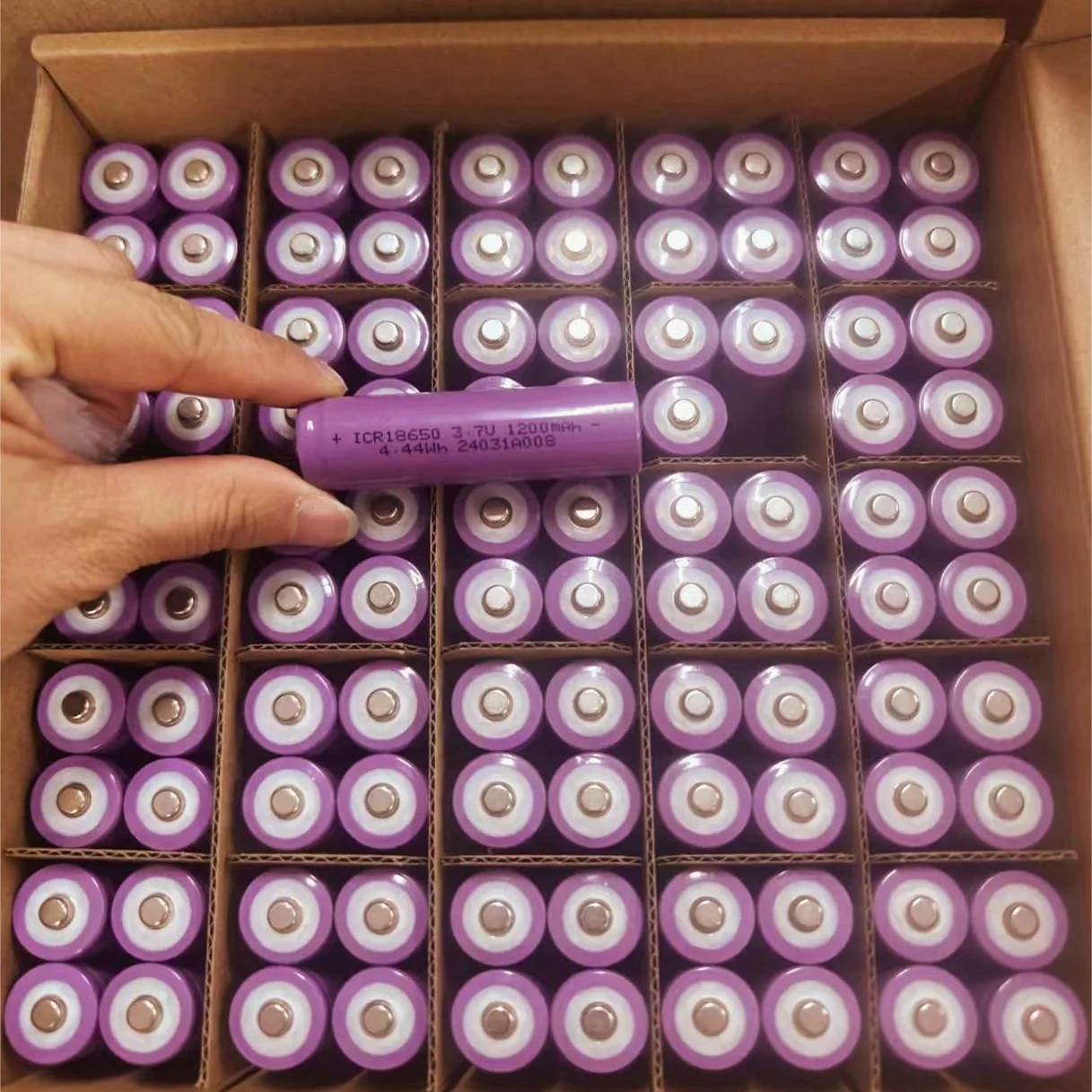

Battery
